Osburn 1700 Fireplace Insert OB01705

Alternative Views:

: $2,699.00

Product Code: OSBURN-1700-INSERT-OB01705

Free Blower:

Free Shipping:

Osburn Door Overlay (required)*:

Osburn Trim Kit (required)*:

Osburn Faceplate (required)*:

Venting:

Fire/Safety Screen:

Venting Accessories:

Insulation kit:

$125 Off Any Chimney Liner Kit

Chimney Liner Kit:

Qty:

Specifications

Technical Specs

Extended Information

500-1800 sq.ft., 18" log, 65,000 BTUs, 78% efficiency, 1.9 cu.ft. fire box, 361 lbs

Osburn Fireplace Insert 1700 OB01705

PRODUCT SPECIFICATIONS

The Osburn 1700 fireplace insert has a firebox has a dimension of (Depth) 22 3/8"

The Osburn 1700 fireplace insert firebox has a dimension (Width) 271/8"

The Osburn 1700 fireplace insert firebox has a dimension (Height) 21 1/4"

The maximum log length that the Osburn 1700 fireplace insert can hold is 18"

The door opening dimension of the Osburn 1700 (Width) is 17 1/4"

The door opening – dimension of the Osburn 1700 (Height) is 8 3/4".

The OB01705 door type has a single glass door with a cast iron frame

The Osburn 1700 glass surface – dimensions (Width x Height) is 15 3/4" x 9 3/8"

The steel thickness – body of the OB01705 is 3/16"

The weight of the Osburn 1700 fireplace insert is 361 lb (164 kg)

The Osburn 1700 has a Firebox volume of 1.9 cubic feet

The OB01705 fireplace opening – has a minimum (Width) of 27 1/2"

The OB01705 fireplace opening – has a minimum (Height) 21 1/2"

The fireplace opening of the Osburn 1700 insert has a minimum (Depth) of 12 7/8"

The Osburn 1700 Glass type is made of ceramic glass

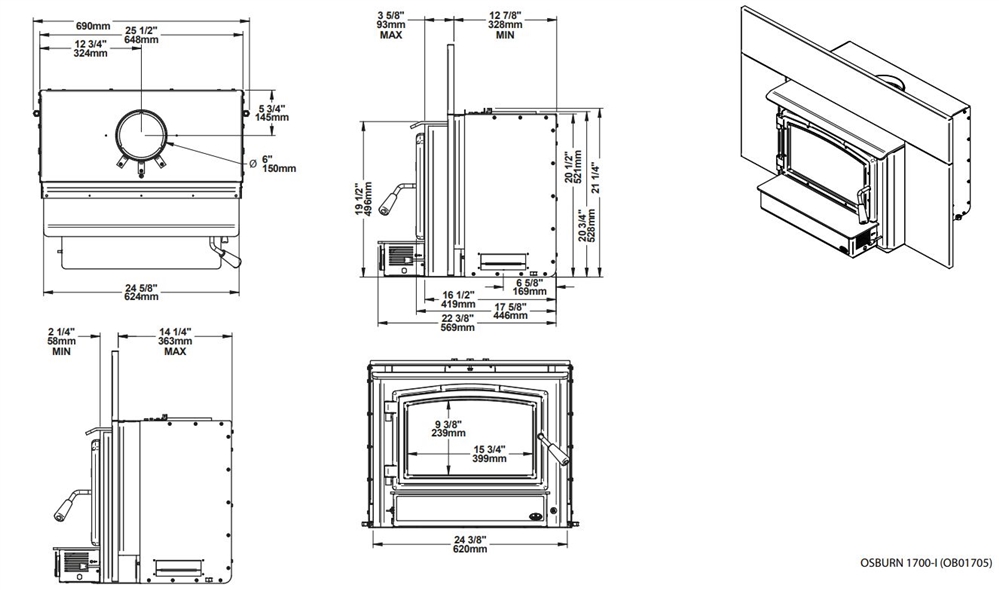

The overall dimension of the Osburn 1700 insert (Depth) is 22 3/8"

The overall dimension of the Osburn 1700 wood insert (Height) is 21 1/4"

The overall dimension has a (Width) of 27 1/8"

Clearance – top (measured from the platform on which the appliance is installed) is N.A.

Centre line of flue outlet to the back is 6''

Centre line of flue outlet to the side is 12 1/8''

Canadian standard (emissions) CSA B415.1

USA standard (emissions) EPA Method 28

Canadian standard (safety) ULC S628

USA standard (safety) UL 1482, UL 907

The Overall heat output rate (max.) of the Osburn 1700 fireplace insert is 42,400 BTU/h (12.4 kW)

Overall heat output rate (min. to max.) of the Osburn 1700 wood burning insert is 15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW)

The maximum heat output of the OB01705 (dry cordwood) is 65,000 BTU/h (19.0 kW)

The fuel type used for the Osburn 1700 insert is dry cordwood

Type of chimney needed: CAN/ULC S629, UL 103 HT (2100 °F)

The minimum chimney height for the 1700 insert needs to be 12 feet

Log positioning over width, left to right or east to west

Recommended heating area for the Osburn 1700 wood burning insert is 500 - 1,800 sq. ft.

Steel thickness – top is 5/16"

Optimum efficiency of the Osburn 1700 insert is 78 %

Average particulate emissions rate is 1.26 g/h

Recommended chimney diameter for the OB01705 is 6"

Baffle type for the Osburn 1700 wood insert is a high heat-resistant C-cast baffle

The Maximum burn time for the Osburn 1700 wood burning fireplace insert is 6 h

Warranty: Limited lifetime

Tested and listed as per applicable standards: By an accredited laboratory (CAN/USA)

Minimum clearances to combustibles *

(Data expressed in inches. 1 inch = 25.4 mm)

Combustible side mantle to unit	10"
Combustible side wall to unit	16"
Combustible top mantle to unit	16"
Combustible shelf to unit	22"
Projection in the room minimum/maximum	2" / 5 3/4"
Minimum floor protection in front of unit	Canada: 18", USA: 16"
Floor (enclosure)	18"

Product Details

Osburn Fireplace Insert 1700 OB01705

Osburn Wood Fireplace Insert 1700 Manual

Like its larger counterpart Osburn 2000, the 1700 insert offers a revamped version of perfect size to provide ambiance and warmth. Give yourself a real haven of peace with an eco-friendly device whose average particle emission rate is prodigiously low at 1.26 g/h!
Inside and out, this insert is engineered from high quality materials that put you at the center of a heating experience for many years: high-density bricks, cast iron door and quiet blower for increased durability. Discover the different options to customize the look of your appliance, available in black or brushed nickel plated: door overlays, faceplates and faceplate trims.
